iOS offline sdk

0.Integration Preparation

Get sample code

Supported Operating System Environment
  • Support iOS 6.0 and above
Authorized Account
  • AppKey
  • SecretKey
SDK files

Get SDK

  • CocoaPods import
  target 'ChivoxDemo' do
  pod 'offLine', :git =>'https://gitee.com/chivoxsupport/offlineaiengine.git', :tag => '2.3.7-3.0.8'
  • Download
    Version Update Date Description
    2.3.7-3.0.8 2025.09.08 Performance Optimization
    Note: Only supports running on real devices.

Historical version changes

  • libaiengine.a
  • libCAIEngine.a
  • The files in the corresponding CAIEngine folder: -ChivoxAILogLevel.h log information level; -ChivoxAIResTool.h resource decompression tool; -ChivoxAIRetValue.h returns the result of the evaluation;
  • Interface of the ChivoxAIAudioPlayer.h player; -ChivoxAIRecorderNotify.h recorder status detection; -ChivoxAIRecordParam.h recording parameters; -ChivoxAISdkInfo.h SDK version information; -ChivoxAIAudioSrc.h recording details; -ChivoxAIEvalResult.h various evaluation result data; -ChivoxAIEngine.h interface file;
Integrate SDK with your project

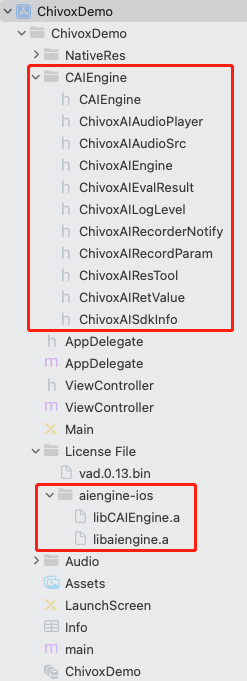

  1. Open the Xcode and copy the SDK files to the Xcode project.
  2. Import CAIEngine.h .

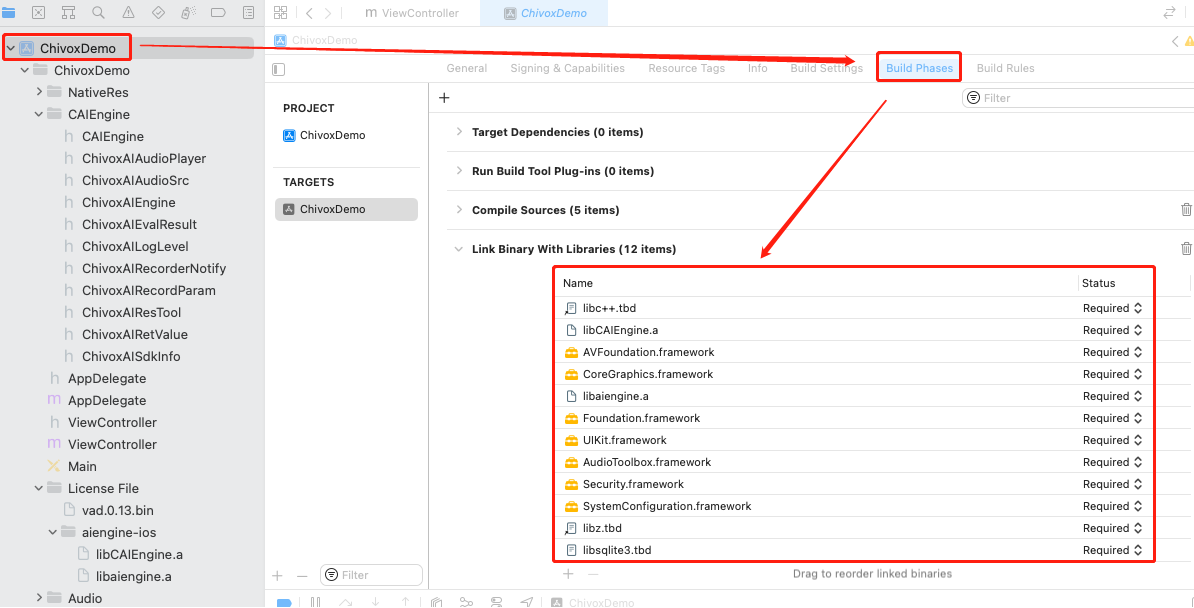

  3. Add related libraries through Xcode configuration as shown below:

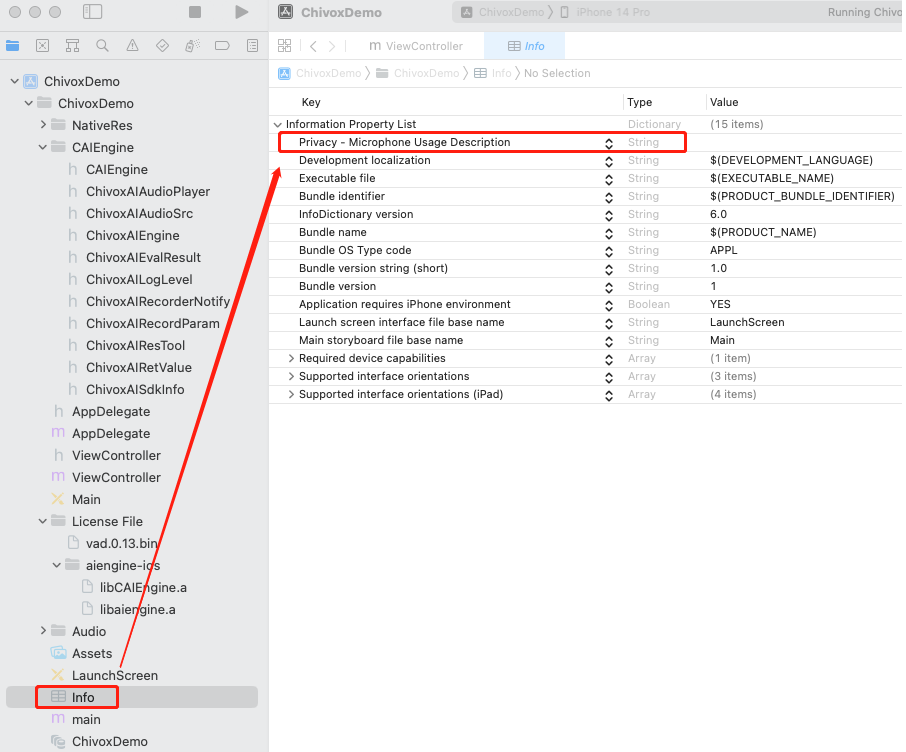

  4. Add recorder permission in info.plist as shown below:
    You need to add the following code in real devices (not required by the virtual device) to grant recording permission through pop-up window:
  5. You can then begin writing code to call the evaluation interface.
Overall Process

1. Get Activation Code

1.1 Function Prototype

  • (nullable NSDictionary *)getProvision:(NSDictionary *)input;

1.2 Function

  • Get the activation code, the device needs to be connected to the Internet when calling (Please note that this operation will consume the license ). The activation code obtained by multiple calls to the same device and the same authorized account is the same, and it is only counted as a license.
  • After calling this method for the first time, please save the activation code in the local file, which can be directly read from the local in the future, no need to get it again.
  • If you need to get the activation code again for some reason, you need to delete the activation code file first and then call the getProvision method again.

1.3 Parameters

Parameter Required Description
appkey true Chivox authorized AppKey.
secretKey true Chivox authorized secretKey.
userId true User ID

1.4 Example of returned data

  • GetSerialNumber
//Acquire the activation code for the first time successfully
{
	"serialNumber": "XXXX-XXXX-XXXX-XXXX-XXXX",
	"provision": "XXXXXXXXXX",
	"tips": "a new provision for userId XXXXXX"
}
//Not the first time to obtain the activation code successfully
{
	"serialNumber": "XXXX-XXXX-XXXX-XXXX-XXXX",
	"provision": "XXXXXXXXXX",
	"tips": "deviceId with your userId already exists"
}
//Failed to get activation code
{
	"error": "getaddrinfo fail"
}

1.5 Sample code


    //Get activation code
    NSDictionary * output = [ChivoxAIEngine getProvision:@{@"appKey" : @"your appKey", @"secretKey" : @"your secretKey", @"userId" : @"your user Id"}];
    NSLog(@"getProvision result:%@",output);
    //Fail
    if ([output objectForKey:@"provision"] == nil) {
        NSLog(@"errLog:%@",[output objectForKey:@"error"]);
        NSLog(@"sperrLog:%@",[output objectForKey:@"sperror"]);
        NSLog(@"tips:%@",[output objectForKey:@"tips"]);
        return;
    }
	else
	{
        //get serialNumber
        self.serialNumber = [output objectForKey:@"serialNumber"];
        NSLog(@"serialNumber: %@",self.serialNumber);
        //get provision
        provision = [output objectForKey:@"provision"];
        NSLog(@"provision: %@",provision);
        //get documenth path
        NSString *documentPath = NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES).lastObject;
        //create test.plist file
        NSString *filePath = [documentPath stringByAppendingPathComponent:[NSString stringWithFormat:@"ActiveInfo.plist"]];
        NSLog(@"plistPath:%@",filePath);
        //write the activation code
        [output writeToFile:filePath atomically:YES];
    }

2.Create Engine

2.1 Function Prototype

  • (void)create:(NSMutableDictionary *)cfg cb:(ChivoxAIEngineCreateCallback *)cb;

2.2 Function

  • Create an engine instance, just create a global evaluation engine when the product starts or enter the evaluation module, and subsequent evaluations can reuse the engine. As long as the engine is not destroyed, it can be reused.

2.3 Parameters

Parameter Description
cfg Create Engine configuration, In JSON format, refer to the cfg parameters below for details.
callback Return scores or exceptions.

2.4 Cfg Parameters

Name Type Required Description
appKey string true Chivox authorized AppKey.
secretKey string true Chivox authorized secretKey.
provision string true The content of the provision field in the activation code obtained in Get activation code.
native object true Offline scoring resources
- timeout int false The timeout (in seconds) from stopping the request to receiving results
vad object false Voice Activity Detection module node
- enable int false Default 0.
1: Load vad module.
0: Not load vad module.
- res string true when vad is enabled Vad resource path.
- sampleRate int false Audio sampleRate，unit Hz
- strip int false Whether to filter the silent frames in the beginning and end, default value is 1, recommend 0.
prof object false Log function.
- enable int false Defult 0.
1, enable log function
0, disable log function
It is recommended to enable it during debug and disable it after official release.
- output String false Log file saved path. If you debug using a simulator, the path can be set to the path on the Mac;
If you debug using an iOS device, you can set the path to /dev/stdout, and the debug info will be displayed in the Xcode debugging window.

2.5 Create Engine Sample Code

    NSMutableDictionary *cfg = [[NSMutableDictionary alloc] init];
    NSMutableDictionary *vad = [[NSMutableDictionary alloc] init];
    NSMutableDictionary *prof = [[NSMutableDictionary alloc] init];
    NSMutableDictionary *native = [[NSMutableDictionary alloc] init];
	[cfg setObject:appKey forKey:@"appKey"];
    [cfg setObject:secretKey forKey:@"secretKey"];


	NSString *provision = [NSString new];

    NSDictionary * output = [ChivoxAIEngine getProvision:@{@"appKey" : appKey, @"secretKey" : secretKey, @"userId" : userId}];
    NSLog(@"getProvision result:%@",output);
    //Fail
    if ([output objectForKey:@"provision"] == nil) {
        NSLog(@"errLog:%@",[output objectForKey:@"error"]);
        NSLog(@"sperrLog:%@",[output objectForKey:@"sperror"]);
        NSLog(@"tips:%@",[output objectForKey:@"tips"]);
        return;
    }
	else
	{
        //get serialNumber
        self.serialNumber = [output objectForKey:@"serialNumber"];
        NSLog(@"serialNumber: %@",self.serialNumber);
        //get provision
        provision = [output objectForKey:@"provision"];
        NSLog(@"provision: %@",provision);

    }

    [cfg setObject:provision forKey:@"provision"];

    //vad source path
    NSString * vadPath = [[NSBundle mainBundle]pathForResource:@"vad.0.13" ofType:@"bin"];
    [vad setObject:@1 forKey:@"enable"];
    [vad setObject:vadPath forKey:@"res"];
    //vad
    [vad setObject:@16000 forKey:@"sampleRate"];
    [vad setObject:@0 forKey:@"strip"];

    [prof setObject:@"/Users/chivox/Desktop/a.txt" forKey:@"output"];
    [prof setObject:@0 forKey:@"enable"];


    cfg[@"vad"] = vad;
    cfg[@"prof"] = prof;


    self.resUtil = [[ChivoxAIResTool alloc] init];
    NSMutableArray *array = [NSMutableArray array];
    [array addObject:@"en.word.score.zip"];
    [array addObject:@"en.sent.score.zip"];
    [array addObject:@"en.pred.exam.zip"];

    self.resUtil.onProgress = ^(float i) {
        NSLog(@"onProgressonProgressonProgress:%f",i);
    };
    NSString * resRootPath = [NSSearchPathForDirectoriesInDomains(NSDocumentDirectory, NSUserDomainMask, YES) lastObject];
    NSString * assetMng = [[NSBundle mainBundle] bundlePath];
    NSLog(@"assetMng:%@",assetMng);
    NSLog(@"resRootPath:%@",resRootPath);
    NSString * errMng = [self.resUtil extract:assetMng assets:array target:resRootPath];
    NSLog(@"errMng: %@ \n",errMng);

    NSMutableArray *arr = [NSMutableArray array];
    [arr addObject:@"en.word.score"];
    [arr addObject:@"en.sent.score"];
    [arr addObject:@"en.pred.exam"];
    native = [self.resUtil loadNativeCfg:resRootPath :arr];
    NSLog(@"nativeDic:%@",native);
    cfg[@"native"] = native;


    ChivoxAIEngineCreateCallback *cb = [ChivoxAIEngineCreateCallback
          onSuccess:^(ChivoxAIEngine * _Nonnull engine) {
        self.nativeengine = engine;
        NSLog(@"success: %@",engine);
    } onFail:^(ChivoxAIRetValue * _Nonnull err) {
        NSLog(@"fail: %@",err);
        dispatch_async(dispatch_get_main_queue(), ^{
            [self errAlert:[NSString stringWithFormat:@"%@", err] errID:@"ERROR"];
        });
    }];

    [ChivoxAIEngine create:cfg cb:cb];

3. Make a request

3.1 Function Prototype

  • (ChivoxAIRetValue *)start:(ChivoxAIAudioSrc *)audioSrc tokenId:(NSMutableString *)tokenId param:(NSMutableDictionary *)param listener:(ChivoxAIEvalResultListener *)listener;

3.2 Function

  • Launch evaluation request. After calling, stop or cancel need to be called to finish the evaluation progress.

3.3 Parameter

Parameter Name Description
audioSrc The source of audio data, only supports wav, mono, 16bite, 16Khz audio format, There are two sources of audio data

1.SDK Built-in Recorder: AudioSrc.InnerRecorder；
This method has integrated system recorder related operations in the SDK, which is suitable for real-time evaluation scenes
Note：To use this mode, you need to configure the recorder. Please refer to 3.6 Recorder Parameters for details.

2.External Recorder: AudioSrc.OuterFeed；
In this way, you need to send audio data from outer recorder to the engine for scoring. If you want to score audio file or use your own audio recorder, please choose this one.
tokenId
If the start call is successful, the tokenId will be written into the ID of this evaluation, which is consistent with the tokenId returned by the evaluation result.
param For details, please refer to 3.5 Evaluation Request Parameters for details.
listener Evaluation result listener, for details, please refer to 5. Receive Result.

3.4 Return value description

Returned Value RetValue.errId Description
0 Succeed
others Fail

3.5 Evaluation Request Parameters

Name Type Required Description
param object true Evaluation content
- coreProvideType string true Set “native”
- serialNumber string true The content of the serialNumber field in the activation code obtained in Get activation code.
- soundIntensityEnable int false Whether to return the volume in real time. The default value is 0. If 1 is set, the volume will pass Receiving resultsCall back the onsoundintensity interface in. The parameter is "sound_intensity", the value range is 0 ~ 100;
- vad object false Voice Activity Detection
- - vadEnable int false Default 0
1: Enable VAD.
0: Disable VAD.
- - refDuration int false Default 0
Set how long will the vad be disbaled after recording starts (unit: seconds)
- - speechLowSeek int false Silence sensitivity, 20ms per frame, set N means after N*20ms of silent audio, it would return 2(time to stop engine)
- app object false App related information
- - userId string false User identification.
It is recommended to fill in with real user account, Facilitate troubleshooting.
- audio object true Audio information
- - audioType string true Audio coding format
- - channel int true Number of audio recording channels
- - sampleBytes int true Audio sampling bits
- - sampleRate int true Audio sampling rate
- request object true Evaluation request, different cores have different parameters, for details, please refer to Offline Kernel Document

3.6 Recorder Parameters Description

Name Type Required Description
audioSrc object Required Recording mode
1. AudioSrc.InnerRecorder()，built-in recorder mode. See the example code in 2.7.1 below；
2. AudioSrc.OuterFeed()，external recorder mode. the external recording mode. See the example code in 2.7.2 below；
- recordParam.sampleBytes int true Sampling bits of built-in recorder
- recordParam.sampleRate int true Sampling rate of built-in recorder
- recordParam.saveFile string true Recording file save path including the audio name
- recordParam.duration int false Recording duration (unit: ms)
different cores have different audio time limit, for details, please refer to Offline Kernel Document

3.7 Code Sample

3.7.1 Built-in Recording Mode Sample Code
ChivoxAIEvalResultListener *handler = [[ChivoxAIEvalResultListener alloc] init];//Set a listener.
handler.onEvalResult = ^(NSString * _Nonnull eval, ChivoxAIEvalResult *
        _Nonnull result) {
    NSLog(@"result:%@ path:%@",result.text,result.recFilePath);
    if (result.text == nil) {
        NSLog(@"The result returned is null！！！");
         return;
    }
     /*Get local playback file path*/
     self.audioPath = result.recFilePath;
     NSLog(@"%@filename",self.audioPath);
     dispatch_async(dispatch_get_main_queue(), ^{
         self.resultTextView.text = result.text;
         [self.indicatorView stopAnimating];
     });
};

handler.onError = ^(NSString * _Nonnull eval, ChivoxAIEvalResult *
        _Nonnull result) {
    NSLog(@"error:%@111111",result.text);
    };

handler.onVad = ^(NSString * _Nonnull eval, ChivoxAIEvalResult *
        _Nonnull result) {
	NSLog(@"vad:%@111111",result.text);
    NSData *jsonData = [result.text dataUsingEncoding:NSUTF8StringEncoding];
    NSError *err;
    NSDictionary *dic = [NSJSONSerialization JSONObjectWithData:jsonData options:NSJSONReadingMutableContainers error:&err];
    if(err) {/* JSON parsing fail.*/
        NSLog(@"JSON parsing fail.");
    }
     NSNumber *vad_status=[dic objectForKey:@"vad_status"];
    // vad_status==0 : no voice;
    // vad_status==1 : is speaking;
    // vad_status==2 : speaking end;
    // depends on the vad_status, execute the service logic
    if ([vad_status intValue] ==2){
        [self.cloudengine stop];
        dispatch_async(dispatch_get_main_queue(), ^{
        self.resultTextView.text = result.text;
        [self.recordButton setTitle:@"record" forState: UIControlStateNormal];
        [self.indicatorView stopAnimating];
        })
	}
};

handler.onOther = ^(NSString * _Nonnull eval, ChivoxAIEvalResult *
         _Nonnull result) {
	NSLog(@"other:%@111111",result.text);
	};
	handler.onSoundIntensity = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
		NSLog(@"sound:%@111111",result.text);
	};

ChivoxAIInnerRecorder *innerRecorder = [[ChivoxAIInnerRecorder alloc] init];//Create audio source
innerRecorder.recordParam.channel = 1;
innerRecorder.recordParam.sampleRate = 16000;
innerRecorder.recordParam.sampleBytes = 2;
/*Get local playback file path*/
NSString *device_id = [ChivoxAIEngine getDeviceId];
NSString *filename = [[NSString alloc] initWithFormat:@"%@/Documents/record/%@.wav",NSHomeDirectory(),device_id];
innerRecorder.recordParam.saveFile = filename;
NSMutableDictionary *param = [[NSMutableDictionary alloc] init];//Create evaluation parameters
NSMutableDictionary *audio = [[NSMutableDictionary alloc] init];
NSMutableDictionary *vad = [[NSMutableDictionary alloc] init];
NSMutableDictionary *app = [[NSMutableDictionary alloc] init];
[param setObject:@1 forKey:@"soundIntensityEnable"];
[param setObject:@"cloud" forKey:@"coreProvideType"];
[vad setObject:@1 forKey:@"vadEnable"];
[vad setObject:@2 forKey:@"refDuration"];
[audio setObject:@"wav" forKey:@"audioType"];
[audio setObject:@16000 forKey:@"sampleRate"];
[audio setObject:@2 forKey:@"sampleBytes"];
[audio setObject:@1 forKey:@"channel"];
param[@"audio"] = audio;
param[@"soundIntensityEnable"] = @0;
param[@"vad"] = vad;
param[@"app"] = app;
NSMutableDictionary *request =  [[NSMutableDictionary alloc]init];
[request setObject:@100 forKey:@"rank"];
[request setObject:@"I want to know the past and present of Hong Kong." forKey:@"refText"];
[request setObject:@"en.sent.score" forKey:@"coreType"];
[request setObject:@1 forKey:@"attachAudioUrl"];
[param setObject:request forKey:@"request"];
param[@"coreProvideType"] = @"cloud";
NSLog(@"%@", param);
ChivoxAIRetValue * e  = nil;
[ChivoxAIRecorderNotify sharedInstance].onRecordStart = ^{
	NSLog(@"start recorder");
};
[ChivoxAIRecorderNotify sharedInstance].onRecordStop = ^{
	NSLog(@"stop recorder");
};
NSMutableString *tokenid = [[NSMutableString alloc] init]; //Tokenid passed in to get.
e = [self.cloudengine start:innerRecorder tokenId:tokenid param:param listener:handler]; //Start evaluation.
if (0 != [e errId]){
	NSLog(@"print failed message：%@",e);//print failed message.
}
3.7.2 External recorder Sample Code

handler.onError = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"error:%@111111",result.text);
};
handler.onVad = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"vad:%@111111",result.text);
};
handler.onOther = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"other:%@111111",result.text);
};
handler.onSoundIntensity = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"sound:%@111111",result.text);
};
ChivoxAIOuterFeed *outfeed = [[ChivoxAIOuterFeed alloc] init]; //Create audio source
NSMutableDictionary *param = [[NSMutableDictionary alloc] init];
NSMutableDictionary *audio = [[NSMutableDictionary alloc] init];
NSMutableDictionary *app = [[NSMutableDictionary alloc] init];
[app setObject:@"iOSUser" forKey:@"userId"];
[param setObject:@1 forKey:@"soundIntensityEnable"];
[param setObject:@"cloud" forKey:@"coreProvideType"];
[audio setObject:@"wav" forKey:@"audioType"];
[audio setObject:@16000 forKey:@"sampleRate"];
[audio setObject:@2 forKey:@"sampleBytes"];
[audio setObject:@1 forKey:@"channel"];
param[@"audio"] = audio;
param[@"soundIntensityEnable"] = @0;
param[@"app"] = app;
NSMutableDictionary *request = [[NSMutableDictionary alloc]init];
[request setObject:@100 forKey:@"rank"];
[request setObject:@"I want to know the past and present of Hong Kong." forKey:@"refText"];
[request setObject:@"en.sent.score" forKey:@"coreType"];
[request setObject:@1 forKey:@"attachAudioUrl"];
[param setObject:request forKey:@"request"];
param[@"coreProvideType"] = @"cloud";
NSLog(@"%@", param);
ChivoxAIRetValue * e = nil;
[ChivoxAIRecorderNotify sharedInstance].onRecordStart = ^{
	NSLog(@"start recorder");
};
[ChivoxAIRecorderNotify sharedInstance].onRecordStop = ^{
	NSLog(@"stop recorder");
};
NSMutableString *tokenid = [[NSMutableString alloc] init];
e = [self.cloudengine start:outfeed tokenId:tokenid param:param listener:handler];
if(e){
	NSLog(@"%@",e);//Print fail reason.
}
resultTextView.text = @"";
[indicatorView startAnimating];
[recordButton setTitle:@"stop" forState: UIControlStateNormal];

4. Send Audio Data


4.1 Function Prototype

  • (ChivoxAIRetValue *)feed:(const void *)bytes length:(int)length;

4.2 Function

  • The external recording mode needs to call this method to transfer audio data, the internal recording mode does not need this method.

4.3 Parameter

bytes： Audio data.
length： Data length.

4.4 Return value description

  • RetValue.errId == 0 Indicates the call is successful, otherwise failed.

Sample Code：


if(!file){
	printf("read file error!\n");
	return;
}
//  fseek(file, 44, SEEK_SET);
while ((bytes = (int)fread(buf, 1, 1024, file))){
	ChivoxAIRetValue *value = [self.cloudengine feed:buf length:bytes];
	if (0 != [value errId]) {
	// Feed call failed, usually because the call sequence is wrong. Please check ret.errId, ret.error to analyze the reason.
	// It is recommended to call eval.cancel() here to cancel the evaluation.
	NSLog(@"%@",value);//print failed message.
	[self.cloudengine cancel];
	return;
}

5. Stop Request

5.1 Function Prototype

  • (ChivoxAIRetValue *)stop;

5.2 Function

  • Call this method to stop recording and submit evaluation. The evaluation score will be returned by ChivoxAIEvalResultListener later.

Note: The stop method must be called in a pair with make a Request, otherwise the start will report an error next time. If the recording duration is specified when using the built-in recording evaluation, then when the recording duration arrives, stop will be automatically called inside the SDK, and the business layer does not need to call it.

5.3 Return value description

  • RetValue.errId == 0 means the call is successful, otherwise failed.

5.4 Sample Code

[self.cloudengine stop];

6. Receive Results

6.1 Receiving Result Interface:

  • Interface ChivoxAIEvalResultListener
  • It is set in the request listener parameter settings: make a request

@interface ChivoxAIEvalResultListener : NSObject
//Evaluation result.
@property (nonatomic, strong) void (^onEvalResult)(NSString *tokenId, ChivoxAIEvalResult *result);
//Binary result returned.
@property (nonatomic, strong) void (^onBinResult)(NSString *tokenId, ChivoxAIEvalResult *result);
//Wrong with Evaluation.
@property (nonatomic, strong) void (^onError)(NSString *tokenId, ChivoxAIEvalResult *result);
//vad detection results
@property (nonatomic, strong) void (^onVad)(NSString *tokenId, ChivoxAIEvalResult *result);
//Sound intensity.
@property (nonatomic, strong) void (^onSoundIntensity)(NSString *tokenId, ChivoxAIEvalResult *result);
//Reserved expansion interface.
@property (nonatomic, strong) void (^onOther)(NSString *tokenId, ChivoxAIEvalResult *result);
@end

6.2 Evaluation Result Class

  • interface ChivoxAIEvalResult

[Instance Method]

  • String tokenId(); Return the evaluation unique ID.

  • boolean isLast(); Return whether it is the final result of this evaluation.

  • String text(); Return the result data when the following EvalResultListener interfaces are called:

void onError(Eval eval, EvalResult result);
void onEvalResult(Eval eval, EvalResult result);
void onVad(Eval eval, EvalResult result);
void onSoundIntensity(Eval eval, EvalResult result);
  • Data data(); Return the result data when the following EvalResultListener interfaces are called:
void onBinResult(Eval eval, EvalResult result);
  • String recFilePath(); Return recording file path if the recording file is saved successfully, otherwise return null.

6.3 Return Result Code Example

handler.onEvalResult = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"result:%@ path:%@",result.text,result.recFilePath);
	if (result.text == nil) {
		NSLog(@"the value returned is null！！！");
		return;
	}
	/*Get local playback file path*/
	self.audioPath = result.recFilePath;
	NSLog(@"%@filename",self.audioPath);
	dispatch_async(dispatch_get_main_queue(), ^{
		self.resultTextView.text = result.text;
		[self.indicatorView stopAnimating];
	});
};
handler.onError = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"error:%@111111",result.text);
};
handler.onVad = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"vad:%@111111",result.text);
	// result returned sample：{"vad_status": 0, "sound_intensity": 12.0}
	   // vad_status: Vad detection status, the value is 0,1,2, status description:
       // 0:vad starts to detect and is in silent state;
       // 1:vad detects the recording;
       // 2:The vad detection is over and the recording is muted again.

};
handler.onOther = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"other:%@111111",result.text);
};
handler.onSoundIntensity = ^(NSString * _Nonnull eval, ChivoxAIEvalResult * _Nonnull result) {
	NSLog(@"sound:%@111111",result.text);
};

7. Cancel Request


7.1 Function Prototype

  • void cancel();

7.2 Function

  • Cancel the current evaluation request.

Note: if you call cancel() after calling start(), you do not need to call Stop().

7.3 Code Sample


// Cancel to get evalution result
[self.cloudengine cancel];

8. Destroy Engine


8.1 Function Prototype

  • (void)destory;

8.2 Function

  • Destroy the engine and release resources. After the engine is destroyed, it can't be used for evaluation again.

Note: This method will be called automatically when the engine is recycled if you don't call this method manually. But the timing of engine recycled is uncertain, so it is recommended to call manually.


8.3 Code Sample


// destroy engine
[self.cloudengine destory];

9. Playback Audio

9.1 Playback Audio Class

  • (ChivoxAIAudioPlayer *)sharedInstance; Function：Return singleton of AudioPlayer.
  • (void)setListener:(ChivoxAIAudioPlayerListener*)_event; Function：Set listener.
  • (void)playFile:(NSString *)path; Function：Start Playback audio in the path. Patameter: path - audio file path.
  • void cancel(); Function：Cancel playback.
  • ChivoxAIAudioPlayerListener Function：Audio playback listener.
  • @property (nonatomic, strong) void (^onStarted)(ChivoxAIAudioPlayer *ap); Function：It is called when the player starts playback.
  • @property (nonatomic, strong) void (^onStopped)(ChivoxAIAudioPlayer *ap); Function：It is called when the player finishes callback.
  • @property (nonatomic, strong) void (^onError)(ChivoxAIAudioPlayer *ap, NSString *err); Function：It is called when the player callback occurs errors.

9.2 Playback Audio Code Sample

self.player = [ChivoxAIAudioPlayer sharedInstance];
ChivoxAIAudioPlayerListener *event = [[ChivoxAIAudioPlayerListener alloc] init];
event.onStarted = ^(ChivoxAIAudioPlayer *ap) {
	[self.playbackButton setTitle:@"stop" forState: UIControlStateNormal];
	self.playbackButton.userInteractionEnabled=NO;//Interactive close.
	NSLog(@"start");
};
event.onError = ^(ChivoxAIAudioPlayer *ap, NSString *err) {
	self.playbackButton.userInteractionEnabled=YES;//Interactive open.
	[self.playbackButton setTitle:@"playback" forState: UIControlStateNormal];
	NSLog(@"error : %@",err);
};
event.onStopped = ^(ChivoxAIAudioPlayer *ap) {
	self.playbackButton.userInteractionEnabled=YES;//Interactive open.
	[self.playbackButton setTitle:@"playback" forState: UIControlStateNormal];
	NSLog(@"stop");
};
[self.player setListener:event];
[self.player playFile:self.audioPath];

10.Other interface

Get SDK version

NSString * sdkVersion= [NSString stringWithFormat:@"%@%@%@%@", @"sdk version: ",[[ChivoxAIEngine sdkInfo] commonSdkVersion],@"-",[[ChivoxAIEngine sdkInfo] version]];
        NSLog(@"sdk version:%@ ", sdkVersion);

SDK, API, MCP and Function Calling documentation on this site.
