WebSocket

0. Preparation

Authorized Account

• AppKey
• SecretKey

Get sample code

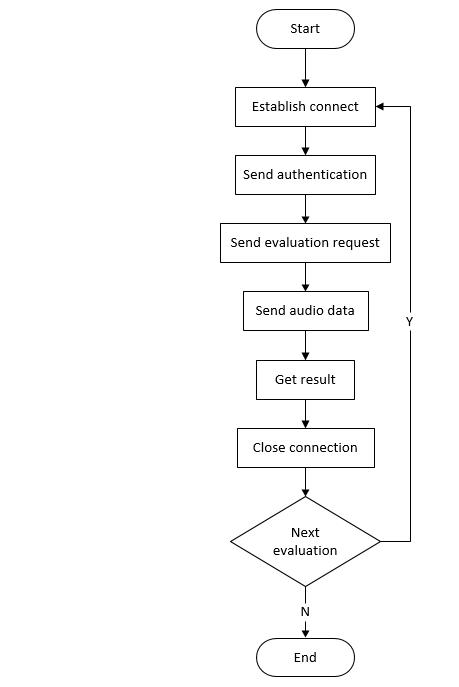

Flowchart

1. Establish Connection

1.1 Address Format

wss://{host}/{coreType}/{res}?appkey={your_appKey}

1.2 Parameter Description

Field	Type	Required	Description
host	string	Required	Server address. Please contact Chivox to obtain the dedicated server address
coreType	string	Required	Kernel type
res	string	Optional	Resource type
your_appKey	string	Required	Chivox-provided appKey

For details on the {coreType} and {res} parameters, see English Kernel Doc and Chinese Kernel Doc for parameter configuration instructions.
These two parameters must remain consistent with request.coreType and request.res in the Send evaluation request section below.

1.3 Connection Example

Example 1

wss://cloud.chivox.com/en.sent.score?appkey=your_appKey

Example 2

wss://cloud.chivox.com/cn.sent.raw/chn.snt.G4.A2?appkey=your_appKey

2. Send Authentication

After the connection is established, an authentication message must be sent immediately. The message format is a JSON string, sent to the backend service via a WebSocket text frame.

2.1 Parameter Description

Field	Type	Required	Description
cmd	string	Required	Fixed value: "connect"
param	string	Required	Parameter root object
-app	object	Required
-- applicationId	string	Required	Chivox-provided appKey
-- sig	string	Required	Signature string Generated via signature algorithm: alg(appkey + timestamp + appsecret)
-- alg	string	Required	Algorithm used to generate the sig signature Currently supports sha256, md5
-- timestamp	string	Required	Timestamp used for signature generation, unit: milliseconds (ms)
-- userId	string	Required	User identifier for the application. Ensure each user's userId is unique.

2.2 Parameter Example

{
  "cmd": "connect",
  "param": {
    "app": {
      "applicationId": "your_appKey",
      "sig": "3705f327f4xxxxxxxxxx",
      "alg": "sha256",
      "timestamp": "1710000000000",
      "userId": "ChivoxWebSocket"
    }
  }
}

3. Send Evaluation Request

After sending the authentication message, send a evaluation request.

3.1 Parameter Description

Field	Type	Required	Description
cmd	string	Required	Fixed value: "start"
param	string	Required	Parameter root object
-app	object	Required	The content of this field is identical to that in the authentication message
-- applicationId	string	Required	Chivox-provided appKey
-- sig	string	Required	Signature string Generated via signature algorithm: alg(appkey + timestamp + appsecret)
-- alg	string	Required	Algorithm used to generate the sig signature Currently supports sha256, md5
-- timestamp	string	Required	Timestamp used for signature generation, unit: milliseconds (ms)
-- userId	string	Required	User identifier for the application. Ensure each user's userId is unique.
-audio	object	Required	Audio format parameters
-- audioType	string	Required	Audio encoding format. Supports mp3
-- channel	int	Required	Currently only mono is supported; must be 1
-- sampleBytes	int	Required	Bytes per sample 1: single byte, 8-bit 2: double byte, 16-bit
-- sampleRate	float	Required	Sample rate. Must match the actual audio
-request	object	Required	Evaluation request parameters. different kernel type incoming parameters are different, check English Kernel Doc and Chinese Kernel Doc for details
-- tokenId	string	Optional	Request ID. The server will return it unchanged in the results.

3.2 Parameter Example

{
  "cmd": "start",
  "param": {
    "app": {
      "applicationId": "your_appKey",
      "sig": "3705f327f4xxxxxxxxxx",
      "alg": "sha256",
      "timestamp": "1710000000000",
      "userId": "user_001"
    },
    "audio": {
      "audioType": "mp3",
      "sampleRate": 16000,
      "sampleBytes": 2,
      "channel": 1
    },
    "request": {
      "tokenId": "token_001",
      ...
    }
  }
}

4. Send Audio Data

Audio binary data is sent to the backend via WebSocket binary frames. After recording ends, send a binary frame with audio length 0.
Note: WeChat Mini Programs, the Mac version of Chrome browser, and the Go language WebSocket API do not support sending binary frames with audio length 0. Instead, send the string {"cmd":"stop"} to indicate that recording has ended.

5. Receive Result

The return result of the evaluation adopts JSON structure, and the data fields returned by different kernels are different. For details, please refer to the English Kernel Doc and Chinese Kernel Doc on the left.
